Temperature sensor for Yamaha DT 125 R, DT 125 RE, DT 125 X, TDR 125 , TZR 125 R, DT200R 1988-1991/1995-1996, FZ700 1987, FZ750 Genesis 1985-1991, FZR1000 1987-1995, FZR250 Genesis 1987-1988, FZR250R 1989-1994, FZR400 1988-1990, FZR400RR 1990-1994, FZR500 Genesis 1989-1993, FZR600 Genesis 1989-1999, YZF R1 1998-1999, YZF R6 1999-2002, YZF1000R Thunderace 1996-2001, YZF600R Thundercat 1995-2007, YZF750R 1993-1998, YZF750SP 1993-1996, VMAX12 VMAX1200 1990-1999, VMX12 VMX1200 1988-2007, XVZ1200 1983-1989, XVZ1300 Venture Royale 1986-1993 temperature sensor temperature sensor transmitter sensor

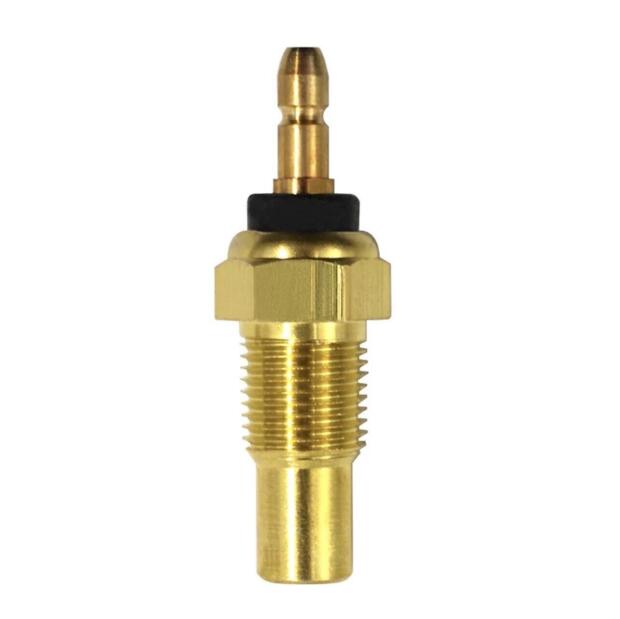

Sensor with a round complete set with a round plug in high original equipment manufacturer quality.
Compatible with following models:
DT 125 R all models and all years of construction suitable
DT 125 RE suitable for all models and all years of construction
DT 125 X all models and all years of construction suitable
TDR 125 all models and all years of construction suitable
TZR 125 R all models and all years of construction suitable
DT200R 1988-1991/1995-1996
FZ700 1987
FZ750 Genesis 1985-1991
FZR1000 1987-1995
FZR250 Genesis 1987-1988
FZR250R 1989-1994
FZR400 1988-1990
FZR400RR 1990-1994
FZR500 Genesis 1989-1993
FZR600 Genesis 1989-1999
YZF R1 1998-1999
YZF R6 1999-2002
YZF1000R Thunderace 1996-2001
YZF600R Thundercat 1995-2007
YZF750R 1993-1998
YZF750SP 1993-1996
VMAX12 VMAX1200 1990-1999
VMX12 VMX1200 1988-2007
XVZ1200 1983-1989
XVZ1300 Venture Royale 1986-1993
OEM part no. to check:
4BA-82560-00
11H-83591-00
The temperature sensor measures the current coolant temperature in the cylinder head through which the cooling water flows and serves to warn the driver of overheating.
The sensor of the 4BL is a so-called thermistor, or NTC resistor.
This has the characteristic that the resistance decreases as the temperature rises.
The thread is a 1/8" tapered thread (which automatically seals it).
The hexagonal head has a wrench size of 12, and the sensor is connected to the wiring harness and thus to the display instrument installed in the rev counter using a round Japanese plug.
With the DE03 model, the sensor is 100% identical except for the plug connection, a flat plug was used instead of a Japan round plug.
You can easily exchange the flat plug for a round plug yourself.
Readings:
The function of the sensor can be tested outside of the motorcycle. According to Yamaha, by heating water and then measuring the resistance, the following values should result:
temperature resistance
50°C 153.9 ohms
80°C 47.5 - 56.8 ohms
100°C 26.2 - 29.3 ohms
The temperature switch closes the contact above a certain temperature and the warning lamp lights up.
Except for the plug connection, the DE03 sensor is 100% identical to the 4BL sensor mentioned above. From the DE03, a flat plug was used instead of a Japan round plug.
Scope of delivery: 1x complete sensor as shown
