Cylinder 80cc tuning 12mm bolt Sachs 506/4 501/4 engine

387,95 €
incl. 19% VAT , plus shipping costs
Manufacturers recommended retail price: 469,00 €
(Save 17.28%, i.e. 81,05 €)

Cylinder and head for Sachs 506/4 501/4 Long hub 44mm engine from Parmakit with 80 cc and 12mm piston pin - racing big bore cylinder and racing cylinder head from Parmakit from 50cc to 80cc

Set

Notify me when this product is available

Goods ordered. 3 Set expected on 25.05.2024.

Delivery status: 1-4 days

Cylinder 80cc tuning 12mm bolt Sachs 506/4 501/4 engine
387,95 €
incl. 19% VAT , plus shipping costs
Set

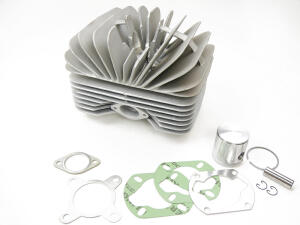

Cylinder with cylinder head for Sachs 506/4 501/4 engine from Parmakit with 80 cc and 12mm piston pin - Parmakit racing cylinder for Long hub 44mm

Racing Cylinder with head complete kit with improved cooling and new piston with a piston ring for maximum performance and highest reliability thanks to the latest Nikasil coating!

Big Sachs 506/4 501/4 engine Nikasil cylinder from 50cc to 80cc big bore tuning cylinder kit with optimized big overflow channels with really much power!

High performance cylinder with 48mm bore and 80ccm!

Specifications of tuning cylinder for Sachs 506/4 501/4 engine models:

- Piston diameter: 48mm
- Piston pin: 12mm
- Displacement: 80cc
- long and short stroke engine
- Cylinder material: Aluminum with Nikasil coating
- Outer diameter cylinder base: 52mm
- Distance between sealing surfaces of the base gasket to the head gasket: 73mm with distance plate
- Outside dimensions cylinder: 210mm x 160mm
- Carburettor connection dimension: 26mm
- Outlet: 33mm, mounting bolts Distance for elbow: 50mm
- New version
- Ideal tuning supplement 19 to 21 Dellorto carburettor or our new flat slide carburettor
- special tuning piston with a piston ring for improved power output and high reliability!

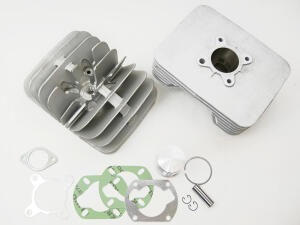

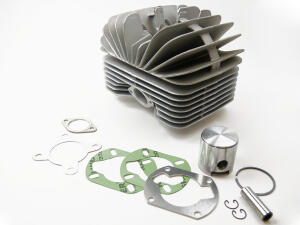

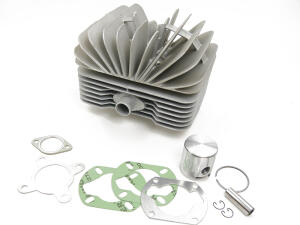

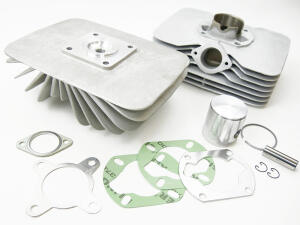

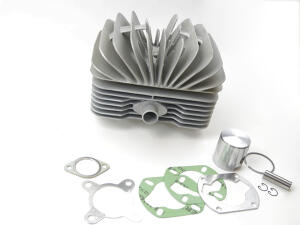

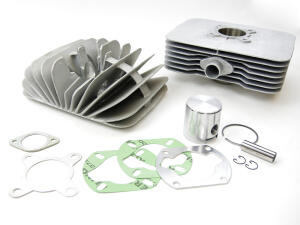

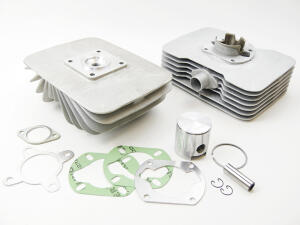

Scope of supply: Complete Sachs 506/4 501/4 engine Big Bore Kit complete with piston, cylinder head, distance plate and gasket kit ready for installation.

Kit complete with all parts for easy installation instead of the original cylinder.
There is a German, English, French and Italian installation instructions.

Nikasil career Explanation:
Nikasil is a registered trademark of the cylinder and piston manufacturer Mahle in Stuttgart.
This has been developed to achieve better lubrication at higher quality, without the need for additional liners such as To use cast iron.
Here, the coating is applied directly to the aluminum cylinder.
This coating is an alternative to the problematic cylinder liners.
This has the advantage of being able to use aluminum light metal high performance pistons which have a tighter tolerance.
As a result, a higher performance and smoothness is possible.
Due to the subsequent cross-grinding of the Nikasillaufbahn the lubrication of the piston is increased by a multiple!
This allows the piston in the cylinder to rotate many times higher!
The Nikasil coating is extremely hard and therefore extremely low-wear and higher load capacity!

Manufacturer: Parmakit
Category: Cylinder and accessories
SKU: 6416500
GTIN: 8056590224540
Type of vehicle‍: MopedMotorcycle
Model‍: KXSGT
Tuning‍: More power, higher top speed

1

4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0

Share your experiences with other customers!:

5 from 5 Zylinder-Set Hercules

Rundum zufrieden.
Artikel entspricht voll und ganz meinen Erwartungen.
Qualität, Verarbeitung, Passgenauigkeit, Preis alles super.

>Roland B., 08.04.2021
Total entries: 1
