Winch Quad ATV 3500 1,6tons extremseries

189,95 €
including 19% VAT. , plus shipping
Recommended retail price: 249,00 €
(You save 23.71%, that is 59,05 €)
winch Quad ATV 3500 extremseries

For this product you will receive 379.9 Reward Points


Notify me when this product is available

Not available now!

Delivery status: 1-4 days

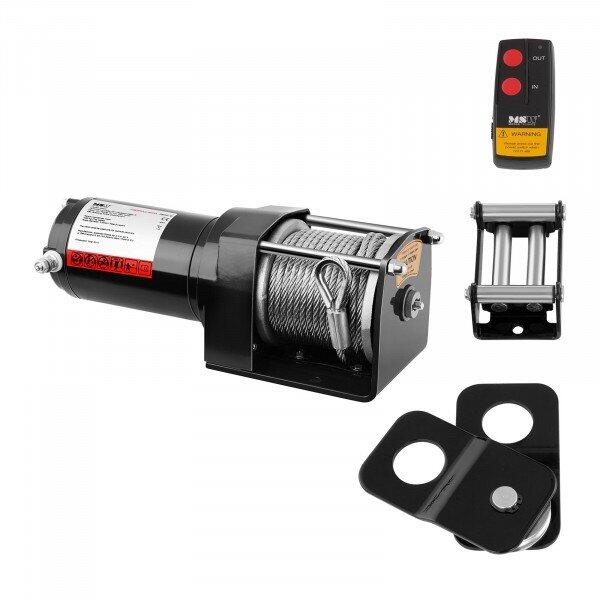

winch Quad ATV 3500 1,6 tons extremseries for Quad ATV UTV complete set

EXTREME WINCH 3500 Quad, ATV , UTV , Side by Side universally suitable for professional use

EXTREMELY robust Winches UTV Quad ATV version for professional / industrial property use and also ideal for hobby !
Complete winch set for quick installation and immediate use.

- Larger gear ratio 128.2:1 for a more effective pulling process : more power with less power consumption

- Improved freewheel mechanism with rotary switch

- Double support of the rope drum through a planetary gear : 3-stage

- Much faster rope speed : up to 6.7 m / min

- 15 meter steel cable length

- With special winch mounting plate assembly

Traction: 1.59 tons - 3500lbs

Operating voltage: 12V


- Planetary gearbox for exremste loads!

- Winch in high-quality professional execution
- Integrated automatic brake

Splash-proof electronics -

- Comfortable handlebar switch for operation: 100% waterproof!

- Integrated free-wheel clutch: manual for unwinding

- Automatic braking position

- Relay disappears in the engine compartment

- Robust planetary gear

- Separate Role window

- Permanent magnet motor

- Clutch for manual unwinding of the rope

- Fasteners and special plate for winch simultaneously with the delivery!

- With winding-

- Guaranteed supply of spare parts by Goetz GmbH

Cable Type:

- Extra strong steel cable

- Cable thickness 4.0 mm

- Cable length 15,2 m

warranty :
- 24 Months

Scope of delivery:

- 12V winch

- Electronics (splashproof)

- Steel hook with tieback

- Switch for handlebar mount (100 % waterproof)

Reinforced rope wind window with roller guide -

- Instructions

- Spare Parts List

- All necessary cables and mounting screws

EXTREME WINCH 3500 Quad, ATV , UTV , Side by Side

Specifications of this winch:
  Capacity 1588 kg (3500 lbs)
  Permanent magnet motor, 12v 0.8kw/1.1PS
  Gear ratio 128.2:1
  Gear 3-stage planetary gear
  Clutch with freewheel integrated
  Cable (diameter x length) 5.4mmx15m
  Drum size (diameter x length) 45mm x 81mm
  dimensions: (L x W x H)   345mm x 118mm x 121mm

Category: universal fits all models
Item number: 6022
Type of vehicle‍: Quad ATV UTV Lawnmower, tractor
Brand‍: Goetz-Motorsport Onlineshop Quad ATV
