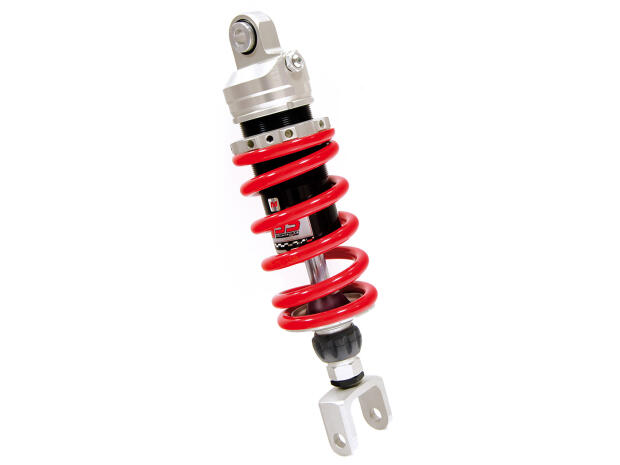

Suspension for Yamaha XT 660 R / X all models from year 2004 mono gas pressure central mono shock absorber.
Specially designed shock absorber for Yamaha XT 660 R / X with e-mark for street homologation and German ABE / KBA / TueV number.
The spring strut is infinitely variable through a fine thread by means of an adjustable spring preload and a tension stage (60 clicks). Complete ready-to-install set with beautiful CNC oil body.
Suspension mono shock absorber for Yamaha XT 660 R / X
This shock has all the benefits of the high performance shocks and is specially constructed for Yamaha XT 660 R / X.
Feature: rebound damping adjustment and threaded spring preload adjustment for everyday useThe Hyperpro shock is equipped with the following techniques:
High performance construction; A wet born piston rod and self-adjusting bearing.Radial piston; This piston with straight flow and preload through a pre-combustion oil chamber guarantees an optimum response.
7075 T6 Aircraft Aluminum
Anti-blocking system; A seperate pressure valve prevents a Hydraulic-lock of the shock.
Anti-fading damping system; The damping system is the best way to achieve the best results.
Rebound / compression adjuster; 50 clicks
Threaded Spring Preload Adjuster
The Hyperpro's progressive or linear spring on request
Maximum compatible; The modular system.
- YSS strut struts that want a much better chassis than the original. Very beautiful CNC machined 7075 T6 aircraft aluminum shock absorber!
- Your Yamaha XT 660 R / X becomes a new motorcycle with completely new driving characteristics!- Due to the stepless adjustment of the spring strut via fine thread you can adjust your Yamaha XT 660 R / X perfectly to the ideal hardness quickly and easily!
- Adjust and setting tool included.
- Gas pressure shock absorbers have the characteristic of a better damping, even with increased stress this does not drop!
- Anti-fading damping system against foaming of the damper oil!
- spring rates with thick 30mm spring handles for exact fine damping
- This shock absorber which can withstand extreme loads and also guarantee a damping of the shock absorber during extreme rides.
- The shock absorbers are easy to install instead of the original shock absorbers
- simple stepless adjustment via threaded adjustment
- Perfect driving behavior due to progresive spring rate, the more the spring strut, the harder it gets!
- Anti-blocking system via a separate pressure valve.
- Shock absorber with numerous tuning and adjustment possibilities
- Complete spring leg set including adjustment key for hardness, adjustment / locking by means of threaded pin.
- Adjustment tool and bushes are included in the scope of supply.
- With e-mark homologation number for street legal!
Technical specifications:
Body type: Gas pressure / oil pressure
Mount up: eye
Diameter of the eye: 12 mm
Length: 345 mm
Fastening down: Fork with 30mm width
Diameter of the top and bottom: 10 mm x 30mm
Adjustment possibilities: Spring preload can be adjusted continuously
Color spring cover: aluminum black / silver
Color Feather: red coated
Spring characteristic: 56-130-185
Damper diameter: 45mm
Damper rod diameter: 16mm
Manufacturer: | YSS Federbeine |
Category: | XT 660 R / X / SM 660 |
SKU: | 40502 |
GTIN: | 4057711068627 |
Colour: | |
Type of vehicle: | Motorcycle |
Model: | SRXT |
Street legal: | e-approval |
