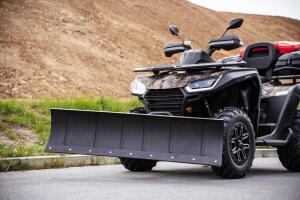

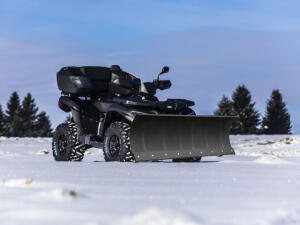

Swivelling 150 cm Metal Snow Plough for CF MOTO ATV with Adapter
This 150 cm wide metal snow plough is designed for selected CF MOTO ATV and quad models. The complete plough system is suitable for winter service as well as other clearing tasks on yards, properties and suitable access roads. The set includes the snow blade, the matching vehicle adapter, the mounting frame and the required mounting components.
The snow plough has a working width of 150 cm and a height of 40 cm. The robust metal construction is made from powder-coated steel and is designed for regular clearing work. In addition to snow, suitable loose materials such as soil, gravel or mulch can also be moved or distributed.
Compatible with Selected CF MOTO Models
The snow plough system is intended for the CF MOTO models listed below. Since different frame designs may exist within individual model ranges, the shape of the vehicle frame should also be checked before installation.
| Manufacturer |
Model |
Year |
| CF MOTO |
450 One |
All model years |
| CF MOTO |
500 XL |
All model years |
| CF MOTO |
CForce 550 |
All model years |
| CF MOTO |
CForce 800 |
All model years |
| CF MOTO |
CForce 850 |
All model years |
| CF MOTO |
CForce 1000 |
All model years |
| CF MOTO |
X450 |
All model years |
| CF MOTO |
X520 |
All model years |

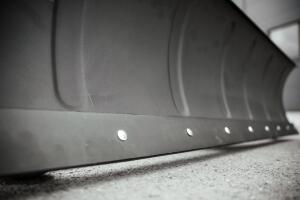

150 cm Wide Metal Snow Blade
With a width of 150 cm, the snow plough provides a large clearing surface for driveways, yards, paths and similar areas. The blade is made from powder-coated steel, combining a solid metal construction with a surface suitable for outdoor use.
A common problem when clearing snow with an ATV is that a straight blade simply pushes the snow forward. This model can therefore be adjusted sideways in five positions. This allows the material to be directed to the left or right instead of collecting directly in front of the vehicle.
Five Side Adjustment Positions
The snow blade can be positioned at different angles depending on the required clearing direction. On longer driveways or access roads, an angled position allows snow to be continuously moved towards the side of the route.
The adjustable blade can also be useful when moving suitable loose materials such as soil, gravel or mulch where the material needs to be directed to one side.
Spring Trip Mechanism for Obstacles
The plough system features a spring-assisted trip mechanism. This allows the blade to move away when it encounters suitable obstacles and helps reduce heavy impact loads on the blade and vehicle.
The riding speed should always be adapted to the ground surface, snow depth and current working conditions during clearing operations.
Robust Construction for Regular Clearing Work
-
150 cm wide metal blade: large clearing area for snow and suitable loose materials.
-
Snow plough size 150 x 40 cm: substantial dimensions for ATV and quad clearing tasks.
-
Powder-coated steel: robust metal construction for outdoor use.
-
5-way side adjustment: different clearing angles can be set to the left and right.
-
Extra-thick rubber scraper edge: forms the lower contact area with the surface being cleared.
-
Spring trip mechanism: supports blade movement when suitable obstacles are encountered.
-
Vehicle-specific adapter: intended for the listed CF MOTO models including CForce 850.
-
Complete plough system: snow blade, vehicle adapter, mounting frame and mounting components are included.
Technical Specifications at a Glance
| Feature |
Specification |
| Product type |
Swivelling snow plough with vehicle adapter |
| Width |
150 cm |
| Height |
40 cm |
| Material |
Metal / steel |
| Surface |
Powder-coated |
| Adjustment |
5-way side adjustment |
| Scraper edge |
Extra-thick rubber |
| Trip mechanism |
Spring-assisted |
| Total weight |
Approx. 39 kg |

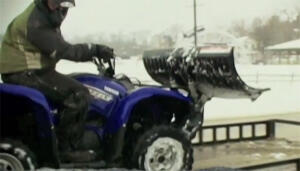

For Winter Service and Other Clearing Tasks
The CF MOTO snow plough with 150 cm working width is particularly suitable for clearing snow from private properties, yards and suitable access roads. Thanks to its robust metal construction, the blade can also be used for appropriate loose materials.
A suitable winch is used to raise and lower the snow plough. Before each use, the mounting points, adapter, mounting frame and moving components should be checked.
Delivery May Be Split into Two Packages
Due to the size and weight of the snow plough system, delivery may be divided into two separate packages. Individual packages may therefore arrive at different times.
Scope of Delivery
- 1 x snow plough blade
- 1 x rubber scraper edge
- 1 x vehicle adapter
- 1 x mounting frame
- 1 x mounting hardware
- 1 x installation instructions
Important Note About CF MOTO Frame Shape
Some CF MOTO models or versions are equipped with a square-section vehicle frame. Vehicles with this frame design require corresponding square mounting brackets. These square mounting brackets are not included in the scope of delivery. Please check the frame shape of your vehicle before installation.
