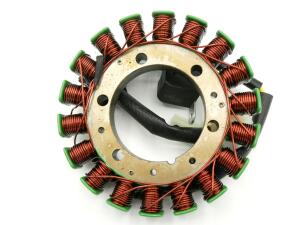

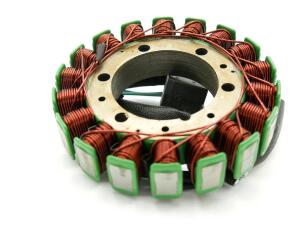

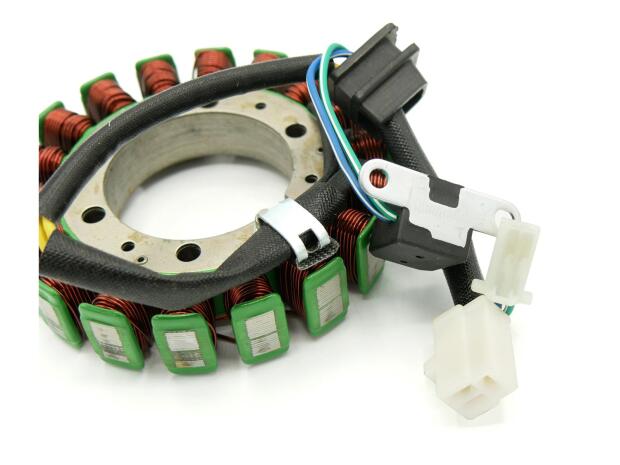

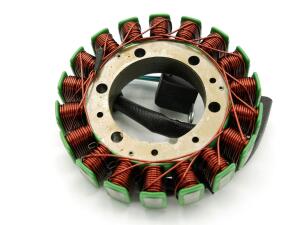

Stator for Suzuki VL1500 Intruder all models from 1998 till 2008 Power Alternator
fits for Suzuki VL1500 Intruder all models from 1998 till 2008
Complete conversion stator kit ready to install.
Stator is reinforced in high quality an much better like the original stator.
The stator gives you the right light output for street-legal.
This a high quality stator that replaces the not-so-reliable OEM stator on yours vehicle.
Our stator is built on a modern stator core and only the highest grade copper wire is used for the windings.
All windings are installed using modern computer controlled winding equipment to ensure the highest possible quality and perfect winding tightness.
On this stator are installed high quality lead wires that offer very chafe and temperature resistant insulation, the best quality rubber seals, insulation coatings and connectors to make this stator a plug in replacement stator.
The ultra high magnetic conductivity of the core material coupled with the low resistance in the reconfigured winding results in the very high efficiency that this stator offers.
It also means that this stator runs very cool which drastically improves reliability.
Our stator offers superior performance and reliability compared to the OEM Stator.
Simple assembly instead of the original stator on the orignal plate including wire harness!
Dimensions:
A: Outside diameter: 115mm
B: Inner diameter: 54mm
C: Iron core thickness: 16mm
Scope of delivery: 1 piece
Important NOTE:
Before installation, check the rubber grommet on the wiring harness. If there are additional holes in the rubber, these must be closed with sealing compound before installation to prevent leaks!
Cable length including plug = 23cm
Suitable for:
Suzuki VL 1500 LC Intruder W AL1211 1998 68 hp, 50 kw
Suzuki VL 1500 LC Intruder X AL1211 1999 68 hp, 50 kw
Suzuki VL 1500 LC Intruder Y AL1211 2000 68 hp, 50 kw
Suzuki VL 1500 LC Intruder K1 AL2111 2001 67 hp, 49 kw
Suzuki VL 1500 LC Intruder K2 AL2111 2002 67 hp, 49 kw
Suzuki VL 1500 LC Intruder K3 AL2111 2003 67 hp, 49 kw
Suzuki VL 1500 LC Intruder K4 AL2111 2004 67 hp, 49 kw
Suzuki VL 1500 C1500 LC Intruder K5 AL2111 2005 67 hp, 49 kw
Suzuki VL 1500 C1500 LC Intruder K6 AL2111 2006 67 hp, 49 kw
Suzuki VL 1500 C1500 LC Intruder K7 AL2111 2007 67 hp, 49 kw
Suzuki VL 1500 C1500 LC Intruder K8 AL2111 2008 67 hp, 49 kw
Suzuki VL 1500 C1500 LC Intruder K9 AL2111 2009 67 hp, 49 kw
Original spare parts comparison number: 32101-10F01
Stator for Suzuki VL1500 Intruder all models from 1998 till 2008
