Ignition alternator flywheel ignition coil contactless 12V 35W left turning Zundapp, Kreidler Florett and more.

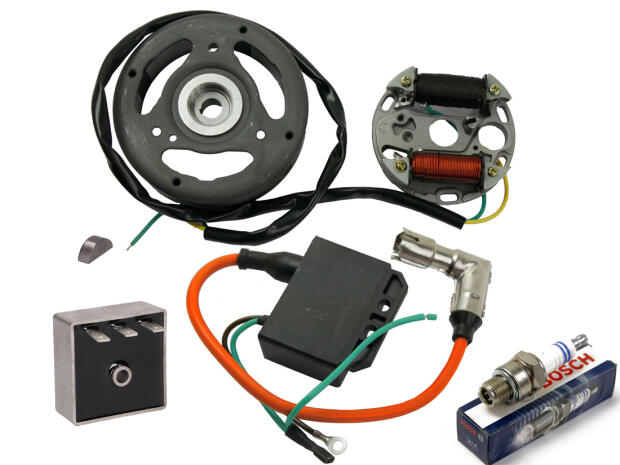

Complete set with ignition system, pole wheel, ignition coil with CDI, charge regulator with rectifier, pole wheel wedge, Bosch spark plug, spark plug connector.
New 12 Volt 35 watt alternator as replacement for original Bosch ignitions.
Contactless flywheel light magneto ignition left rotating.
Full 12V 35W fully electronic contactless with CDI - maintenance free!
Complete set with flywheel and external ignition coil with spark plug connector.The generator set is for anti clockwise engine such as Zundapp and Kreidler etc..
The ignition system is fully electronic contactless with CDI.This special racing ignition develops a much stronger, more powerful spark than a normal contact controlled ignition system!
Thus also with highly tuned engines perfectly since the ignition controls the most optimal ignition time with each number of revolutions.
The racing ignition system develops a more powerful, always constant spark!
Thus the engine has a substantially better combustion of the gas air mixture and increases and optimizes thereby the achievement.
Due to the contactless controlled ignition system there are no fluttering and permanently closing breaker contacts.
The alternator has a much higher output due to the 12 Volt!
With 12 Volt you have a much stronger light!
Please note:
If you have 6V as standard, please replace the bulbs with suitable 12V bulbs.
Advantage of this new electronic ignition system:
- Contactless, never change or adjust breaker contacts again.
- substantially better luminous efficacy
- Battery can be connected on request
- improved performance due to precise ignition point
- maintenance-free
- stronger, more constant spark
- brighter light
- constant higher performance
- better combustion of the gas air mixture
- no fluttering and permanently closing breaker contacts
Alternator in very high OEM quality.
Complete alternator set with ignition, spark plug connector and pole wheel.
Dimensions:Outer diameter anchor plate: 90mm
Inside diameter anchor plate: 18mm
Mounting oblong holes Diameter middle to middle Hole: 80mm
Diameter of anchor plate approx. 90 mm
Outer diameter of pole wheel 115 mm
Cone Poling wheel approx. 12 to 14.5 mm
Complete set with special pole wheel, connection cable, light coil, ignition coil, special control unit with ignition cable and charge regulator with rectifier, pole wheel wedge, Bosch spark plug, spark plug connector.
Scope of delivery: Complete big generator set for simple and quick installation instead of the old generator ignition system.
